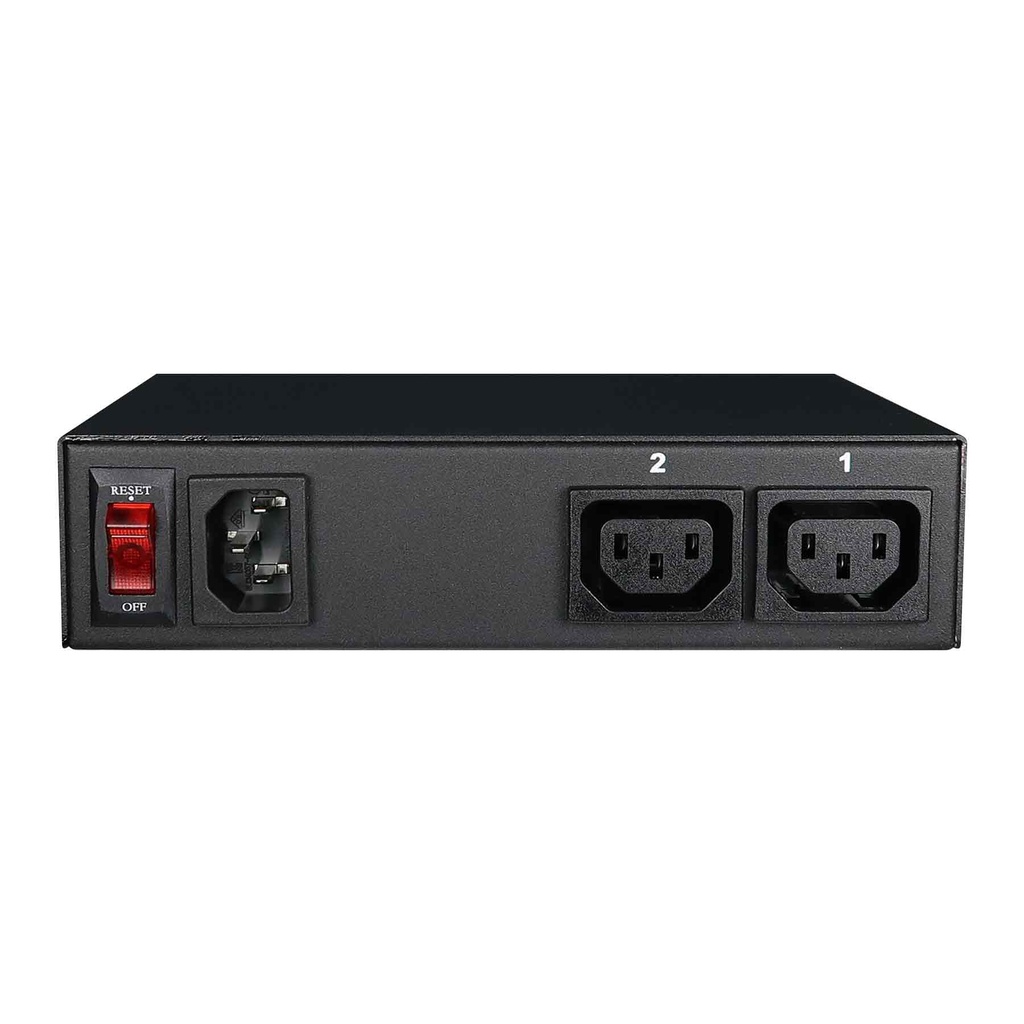

EPH-2A-10Z3
EnvirPro EPH series (hereinafter referred to as EPH series) consolidates power control, temperature monitoring, dry contact (sensor) detect, power monitoring, security, UPS detect, web page management, message, e-mail, and SNMP functions together to enable MIS staff to be informed with the power supply, external temperature of equipment, and thereby to remotely deal with the relevant problems through Internet. In this way, problems can be solved timely, helping to reduce the losses of enterprises, while MIS staff can save time without commuting between two places.
EPH series allows managers to manage hundreds of EPH series products at a single interface through IDCView central control software, accordingly greatly simplifying the issue of device network IP management.
| Voltage: 100-240V |
| Socket: IEC 60320 C13 |
| Plug: separated power cord-IEC60320-C14 |
| Materials: Iron Case |
| Rack Form: 19" standard racks (1U) |
Product Features
- Support external temperature and humidity sensor (option) to monitor 7 temperatures and one humidity.
- Warning by Email and SMS to monitor environment and alert in real-time.
- Support sequential startup to prevent all outlets turned on simultaneously which may result in power overload to affect device operations.
- Provide many sets user defined account and password to manage different power switches.
- Support SNMP V1/V2/V3, can monitor device status via SNMP View.
- SNMP Trap supported.
- Support SysLog. User can collect device data by SysLog Server, and integrate to IDC View, the centralize management software.
- Support IP and MAC filter to prevent unauthorized access.
- Record operations and alarms, user can check the events afterward.
- Support online firmware upgrade.
- Built-in vibration, voice, and intrustion sensors to detect destructive behaviors and send alarm to user.
- Power schedule supported.
- Support 4 dry contact inputs, 2 AC outlets. Dry contact inputs can connect with leakage, smoke and door sensors.
- Supports PING function. System will reboot, and send email or SMS to alert according to user defined ping failure times.
- Serial Port supports, and can connect UPS and do parameter setup.
- Support 12VDC(100mA) D/O. It offers power to connected sensor.
- Monitor UPS low battery signal. Equipment can be shutdown in time to avoid possible damages.
- Built-in surge protector to avoid the damages by voltage spikes.
Specifications
| Input Voltage | 100 - 240 VAC |
Standby Mode | 5W |
Power Frequency | 50 / 60 Hz |
Plug Type | IEC 60320 C14 |
Output Voltage | 100 - 240 VAC |
| Materials | Iron Case |
Rack Form | 19" standard racks (1U) |
Dimension Unit : mm | 178(L)*135(W)*44(H) |
Weight | |
Power Cord Length | 1.8 M |
Temperature(Operating / Storage) | 0° - 45° C / 0° - 60° C |
| Humidity(Operating / Storage) | 0 - 90% No Condensation |
